HIGH RECOVERY REVERSE OSMOSIS

High-Recovery RO · More Water, Less Waste

More Water.
Less Concentrate.

Lower Costs · More Reuse · Less Concentrate

Upgrade existing RO, recover more from RO concentrate, or reduce feed to ZLD / MLD treatment. Designed for your site.

Explore HRRO Ask About HRRO

Up to ~95%Site-dependent recovery

Approx. 30%+*Lower energy per m³ treated*

Longer Membrane LifePotentially fewer replacements

YOUR CURRENT RO

What Could Your RO Do Better?

Start with your site’s key challenges.

Lower Operating Costs

Reduce energy and membrane costs

Reduce Concentrate

Less concentrate to handle or dispose of

Recover More Water

More product water from the same feed

Support ZLD / MLD

Reduce downstream treatment demand

Recover RO Concentrate

Extract more water from existing RO concentrate

Why Choose HRRO?

Conventional RO recovers water. HRRO can go further.For sites seeking higher recovery with less concentrate and lower operating costs.

HOW TO APPLY

Where HRRO Fits Your Site

Choose the right configuration for your site—without assuming a full replacement.

Upgrade or Build New

Designs matched to feedwater, capacity and recovery goals.

Recover Existing RO Concentrate

Recover more water without replacing the entire RO system.

Before ZLD / MLD Treatment

Reduce the volume sent to concentrators and evaporators.

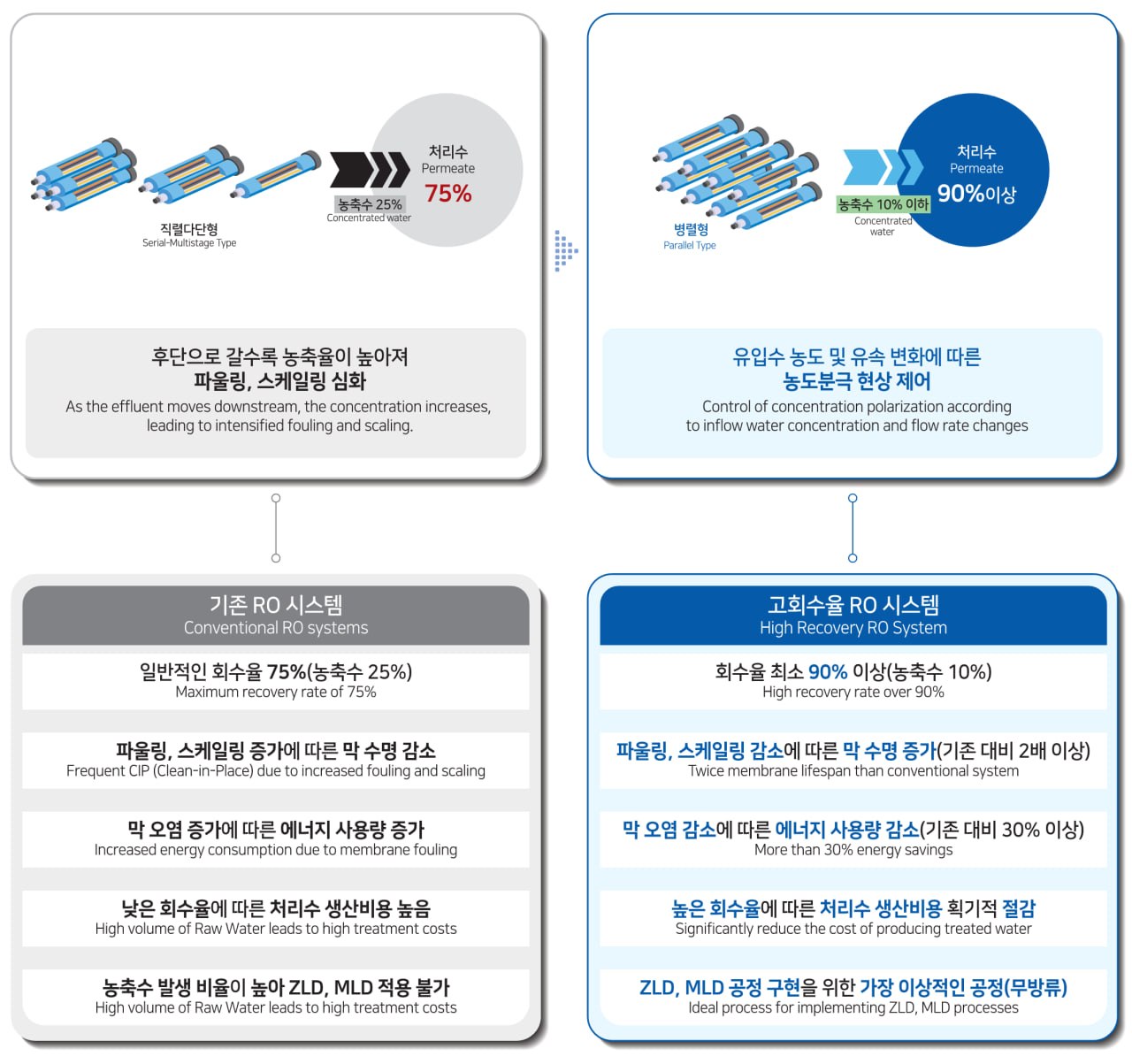

WATER BALANCE EXAMPLE

More Water. Less Concentrate.

Example: 75% vs. 90% recovery.

Conventional RO75% Recovery

Product Water 75Concentrate 25

HRRO90% Recovery

Product Water 90Concentrate 10

Up to ~95% recovery may be possible, depending on feedwater and operating conditions.

ZLD / MLD

Less Concentrate. Less ZLD / MLD Load.

For ZLD / MLD, HRRO can recover more water before concentration or evaporation, reducing the volume requiring thermal treatment.

01RO ConcentrateFeed to downstream treatment

→

02Recover with HRROCapture more reusable water

→

03Less to TreatLower downstream feed volume

→

04Potential Cost SavingsLower treatment demand

MLDMinimal Liquid Discharge

Minimizes liquid wastewater discharge.

ZLDZero Liquid Discharge

Aims to eliminate liquid wastewater discharge.

ECONOMICS

Compare Total System Costs

A like-for-like scenario: equal product-water output, four cost indicators.

Wastewater Volume10,168 → 2,722 m³/day~73% less

CAPEXKRW 50B → 40B~20% less

Annual Electricity Use7,650 → 5,572 MWh~27% less

Membrane ReplacementKRW 500M → 250M/yr~50% less

Scenario BasisEqual product-water output

UF 95% (Both)·Conventional RO 75%·HRRO 95%

Illustrative estimates at equal product-water output. Wastewater includes UF and RO concentrate. Actual results depend on feedwater, capacity, recovery and design.
* The ~30%+ energy figure is a separate design estimate, not the ~27% annual-electricity result above. It depends on water quality, recovery, membrane selection and pump efficiency.

AQUAWORKS CAPABILITY

Built for Performance. Backed by Validation.

Design, control and field evidence—working together.

DESIGN · CONTROL · VALIDATION

Designed for Your Water.
Verified in the Field.

Site-specific design, automated control and field testing support stable operation.

Design & Simulation

Matched to water quality and recovery goals

Automated Control

Adapts to changing operating conditions

Pilot Operation

Long-term performance and stability testing

Patents & Testing

Supported by patents, tests and field data

Design Software

From Site Data to HRRO Design

Assess recovery, energy use (SEC) and concentrate volume from your site data.

HRRO Design Software SIMULATION

AquaWorks HRRO design software input screen

Field Evidence & Verification

Patent certificate related to high-recovery RO

Patents

High-recovery RO patents

Performance Tests

Water treatment test reports

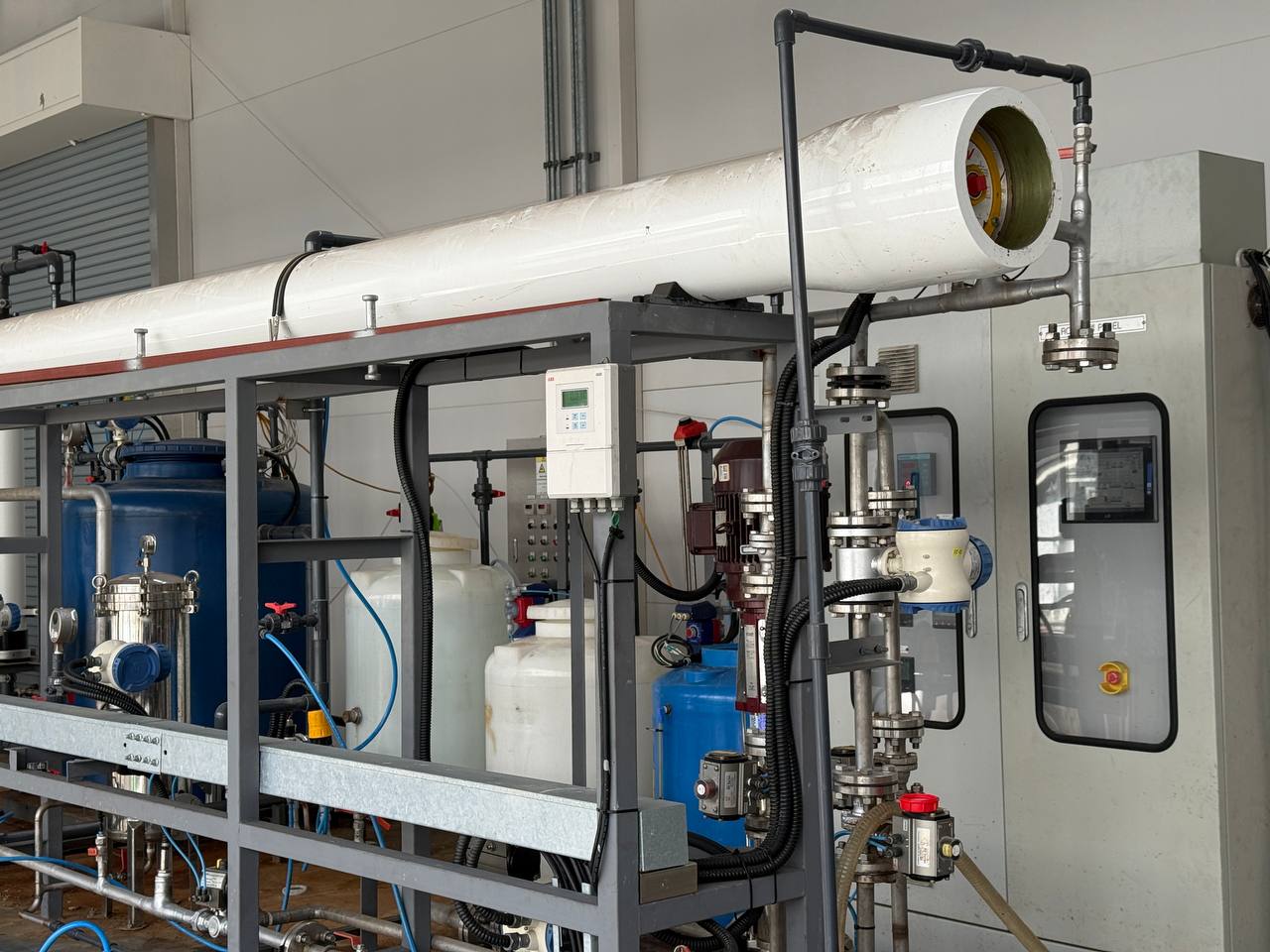

Field Demonstration

Pilot operation at the Korea Water Cluster

Design & Installation

Site-specific HRRO projects

Policy & Industry

Water Reuse Needs Economic Value

Cost matters as water reuse and discharge reduction grow.

Hankook Ilbo · August 10, 2026 Choo Mi-ae Urges Chipmakers to Cut Wastewater

Korean news on industrial water reuse and ZLD / MLD investment.

Read Original (Korean)

Expand Water Reuse

Use treated water in industrial processes

Reduce Discharge

Reuse more water and discharge less

Support ZLD / MLD

Reduce discharge through suitable treatment

HRRO Assessment

Improve Your RO with a Site-Specific Plan.

Share your water quality and recovery goals. We’ll review recovery, SEC and concentrate volume.

INPUTYour Site Data

Feedwater Quality Capacity Recovery Goal Operating Conditions

REVIEWWhat We Assess

Recovery RateSECConcentrate VolumeMembrane LifeZLD / MLD

HRRO Design Matched to Your Site Ask About HRRO
