Mobile Drinking Water Supply Trailer

A-MDT Series

Water supply solutions beyond spatial constraints

Excellent Mobility

Free mobility unrestricted by location

Rapid Response

Wide area coverage with rapid response to water demand

Independent Operation

Built-in generator enables independent operation even in areas without electricity

Versatile Water Sources

Customizable process allows utilization of various water sources based on feed water quality

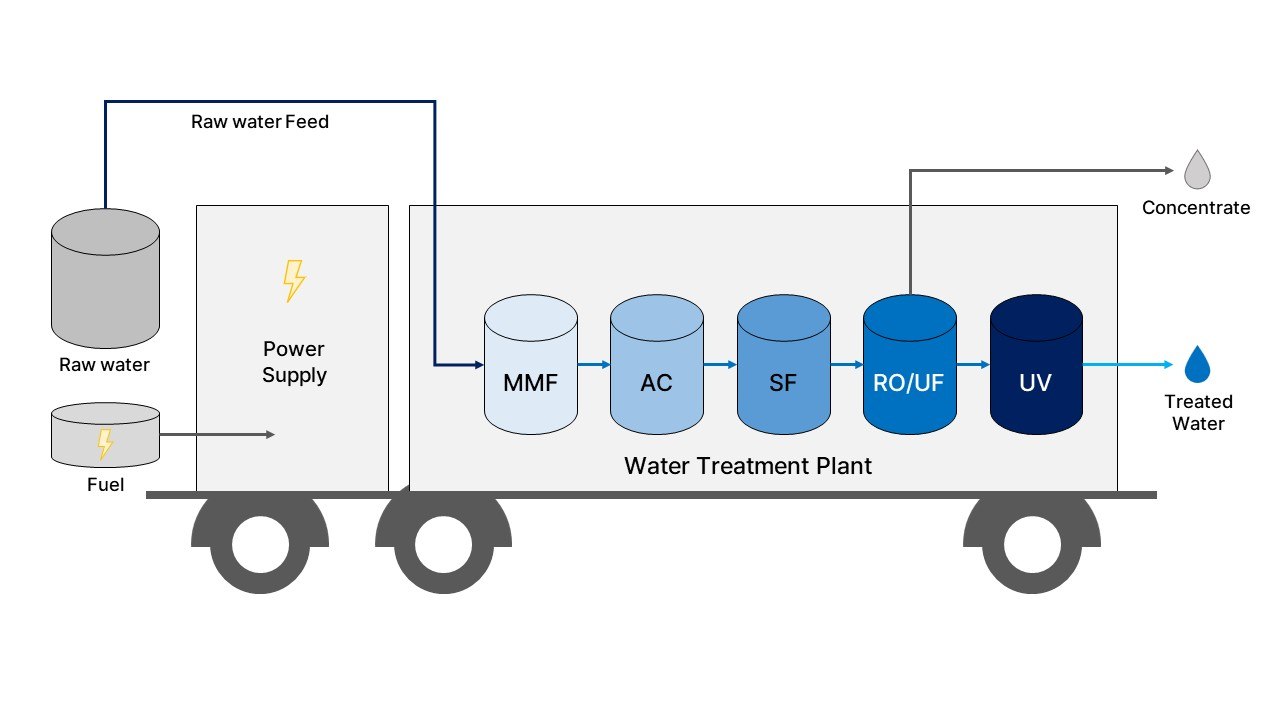

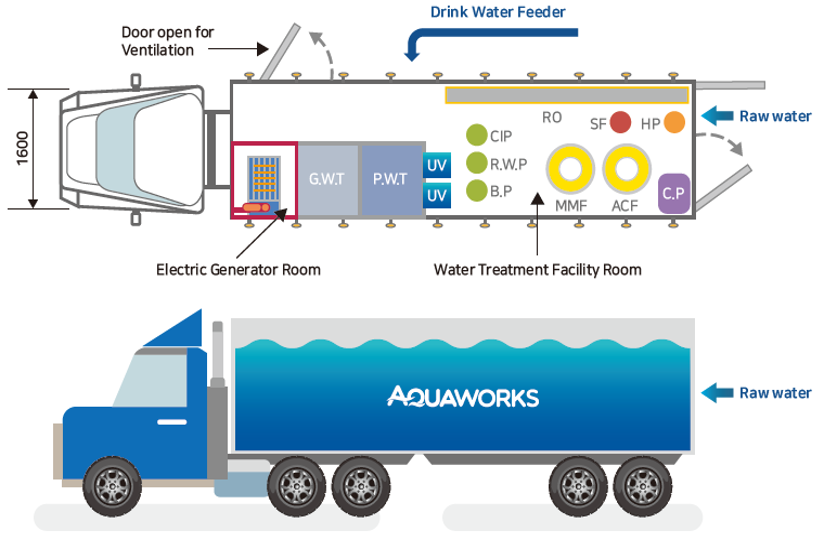

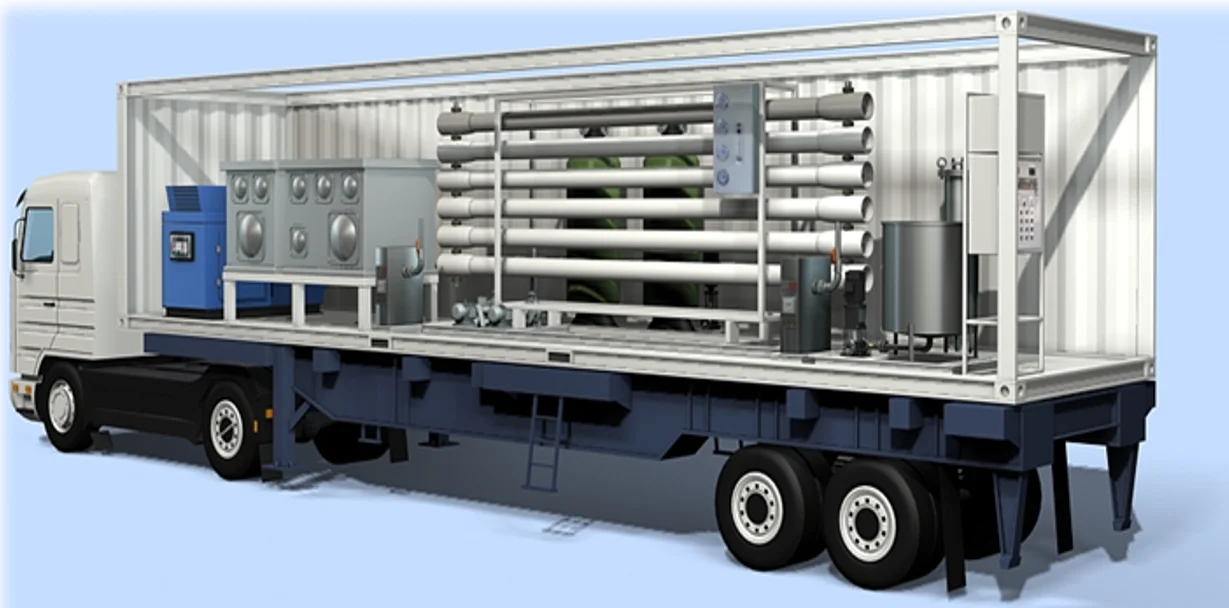

Key Components

Diesel Generator

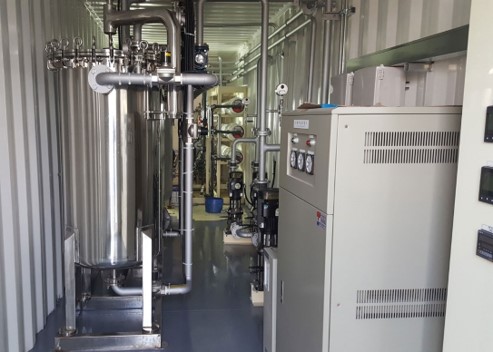

Pre-treatment System

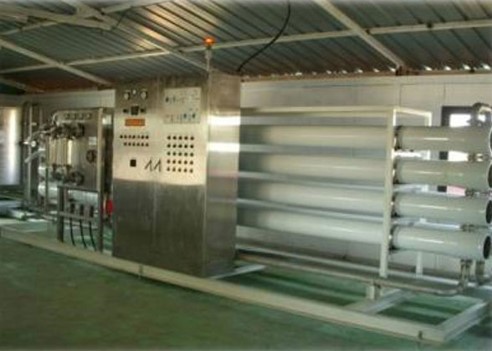

Membrane System

Post-treatment System

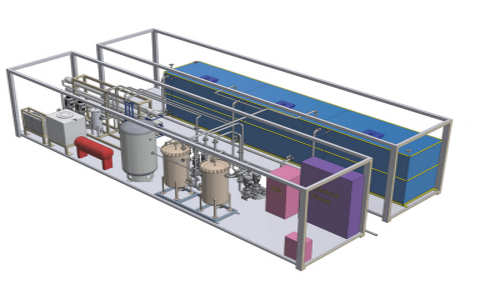

A-MDT lineup and detailed specifications

Category	A-MDT-20	A-MDT-50	A-MDT-100	A-MDT-200	A-MDT-400
Vehicle Spec	1.2 ton truck	2.5 ton truck	5 ton truck	9.5 ton truck	5 ton + 9.5 ton truck
Container Size	W1.8m×L3.3m×H1.8m	W1.9m×L4.3m×H1.8m	W2.3m×L5.9m×H2.6m (20ft standard)	W2.3m×L12m×H2.6m (40ft standard)	W2.3m×L18m×H2.6m
Capacity (20hr/day)	1 m³/hr (20 m³/day)	2.5 m³/hr (50 m³/day)	5 m³/hr (100 m³/day)	10 m³/hr (200 m³/day)	20 m³/hr (400 m³/day)
Generator	Diesel Generator (10 Kwh × 50Hz)	Diesel Generator (10 Kwh × 50Hz)	Diesel Generator (20 Kwh × 50Hz)	Diesel Generator (40 Kwh × 50Hz)	Diesel Generator (60 Kwh × 50Hz)
Treated Water Quality	TDS < 200 mg/L Hardness < 50 mg/L	TDS < 200 mg/L Hardness < 50 mg/L	TDS < 200 mg/L Hardness < 50 mg/L	TDS < 200 mg/L Hardness < 50 mg/L	TDS < 200 mg/L Hardness < 50 mg/L
Drinking Water (2L/person/day)	10,000	25,000	50,000	100,000	200,000
Domestic Water (100L/person/day)	200	500	1,000	2,000	4,000
